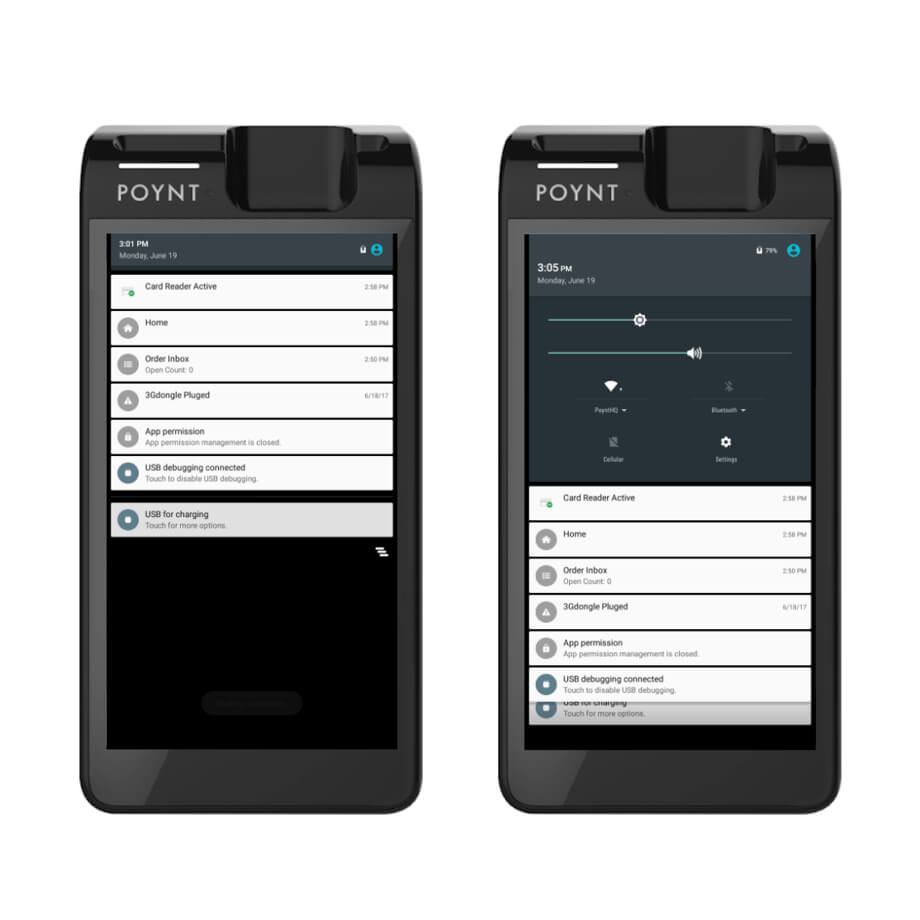

Yocale Pay - Poynt 5

Smart Terminal

Specifications

Processor
Application processor: Quad-core ARM Cortex A53 Security processor: Single-core ARM Cortex M3
Memory/ Storage
1GB DDR RAM / 8GB Flash
Display
5.0” secure touchscreen display – 720(w) x 1280(h) pixels
Operating System
Poynt OS
Connectivity
WiFi: 802.11 a/b/g/n
Bluetooth 4.2
*Optional feature:
3G/2G cellular modem
Camera
Rear camera: 5 MP with auto-focus
Red barcode LED
Audio/Microphone
Mono speaker
Built-in microphone
Other Features
3-axis accelerometer
Switchable full-scale ranges (≥ 5 ranges)
Packed Applications
Poynt Terminal, Poynt Register, Settlement, Help
Physical
76.3 mm x 154.0 mm x 25.4 mm | 201.6g
Card Reader
Hybrid MSR/ Chip Reader
Magnetic stripe reader: Triple track (tracks 1, 2, 3), high coercivity, bi-directional
Chip reader: ISO 7816, 1.8V, 3V, 5V;
synchronous and asynchronous cards;
EMV Level 1 and 2 Type approved
Protocols
Supports major NFC/contactless shemes,
ISO 14443 A&B, MiFare capable, ISO18092 capable
Security
PCI PTS PED and SRED 4.x, End to end encryption Support TLS 1.2
EMV Ready
Device is EMV ready for standard PCI PTS 4.x
Certiﬁcation
EMVCo L1, L2 certiﬁcation, PTCRB, FCC, IC
and CE
Environmental
Operation 0° to 40°C,
90% Maximum non-condensing up to 45°C Storage: -20°C to 75°C,
90% Maximum non-condensing up to 60°C
Power
Battery: 1900mAh, 4.35 V, 800 cycles
Power Adaptor: 5V / 2A (100~240V)
Smart Card Reader Life
Smart Card: 500,000 reads. MSR: 500,000 swipes

Overview

Security. The latest encryption technology keeps customers’ minds at ease.

Wide card acceptance. Avoid the “we don’t accept that” moment.

Flexibility. Easily deploy promotions, campaigns, and offers, all from your smart terminal.

Versatility. Works with third-party peripherals; easily connects to USB and network printers, cash drawers, & barcode scanners.

Visibility. Easily view customizable reports, sales metrics, and more, even from your smartphone. Know
exactly what’s going to be in the bank the next day.

Ease of use. Out-of-box setup in as little as 5 mins. The intuitive user interface, new tutorials (both on-device and online), and expert training ensure minimal time required for set-up.

Speed. Faster transactions reduced wait times more customers served increased customer satisfaction.

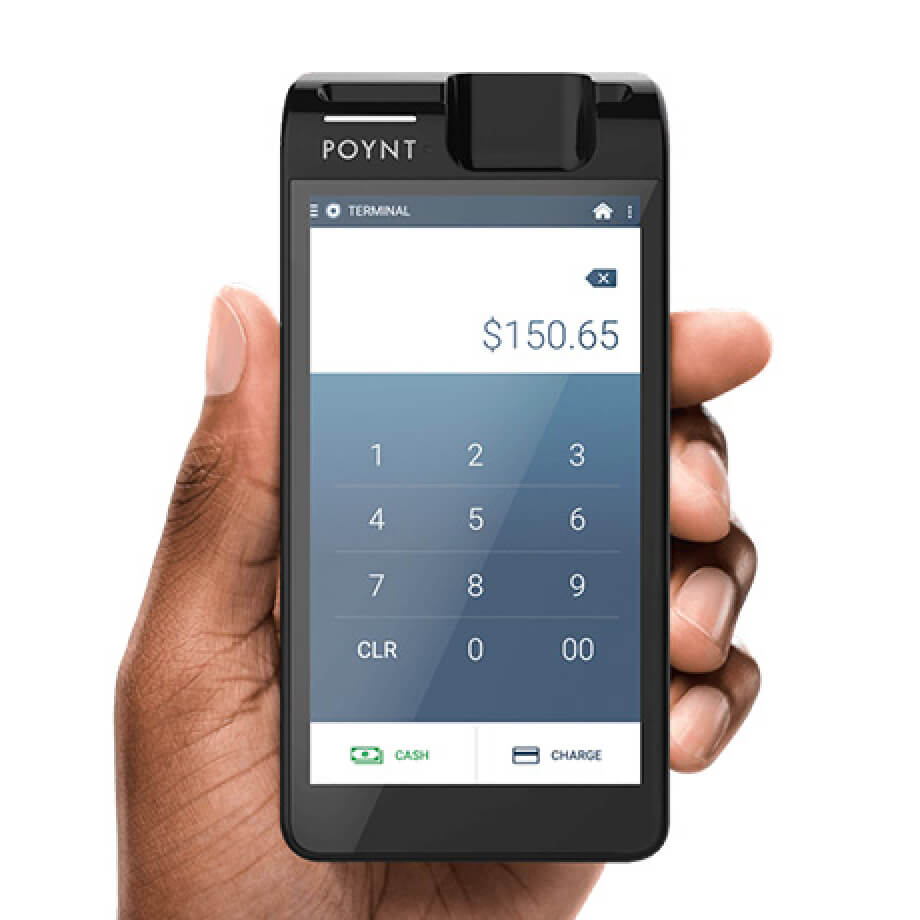

Poynt 5

Sleek and sophisticated, this cell phone-sized smart terminal comes with a powerful merchant business intelligence center and app store access to customize it to your needs. Access sales data, track inventory, manage employees, accept mobile wallets and more with Poynt 5.
